Revision 1.6 · November 21, 2026

WoodWright 1.6

Build sheets redrawn, every Library piece drawn to scale, and many small fixes in Setup, the editor and Sheets.

Free · Windows and Mac (beta) · 1.6.0 · 54 MB

011.6

Build sheets, redrawn.

The box drawn big, each size said once. Classic papers prints the old ones.

The top of a WoodWright build sheet for the Sample Kitchen’s sink base, sheet 3 of 7: what is not standard said first, then the box drawn from the front and in section with its sizes
021.6

Every Library piece, drawn to scale.

Each piece is drawn from its own numbers: front, plan and side. The Drawn previews tick on the Library heading shows the old pictures.

WoodWright’s Library on its Cabinets shelf with Drawn previews ticked: base cabinets from 12 to 48 inches wide, each drawn to the same scale with its doors, drawers and pulls
031.6

Hinge counts on the door list.

The door list and the schedule give each door’s hinge count. Section drawings carry their note numbers. Print this view prints what is on screen without the selection marks.

041.6

Setup finds it, and holds your size.

Setup’s search finds “reveal” and “light”. Number boxes hold sizes like 3 25/32. One press on a row’s back arrow puts the job’s value back.

051.6

A cabinet’s panel shows what that cabinet has.

No Toe section on a wall box, no hinge row on a face of drawers. In 3D, Fit frames the open cabinet, not the room. The bench opens on the cabinet you are working on.

061.6

Sheets hold still while you work.

Sizes read in inches, and the G-code preview names parts by their sheet numbers. Add a bit: the form comes into view, ready for a name.

071.6

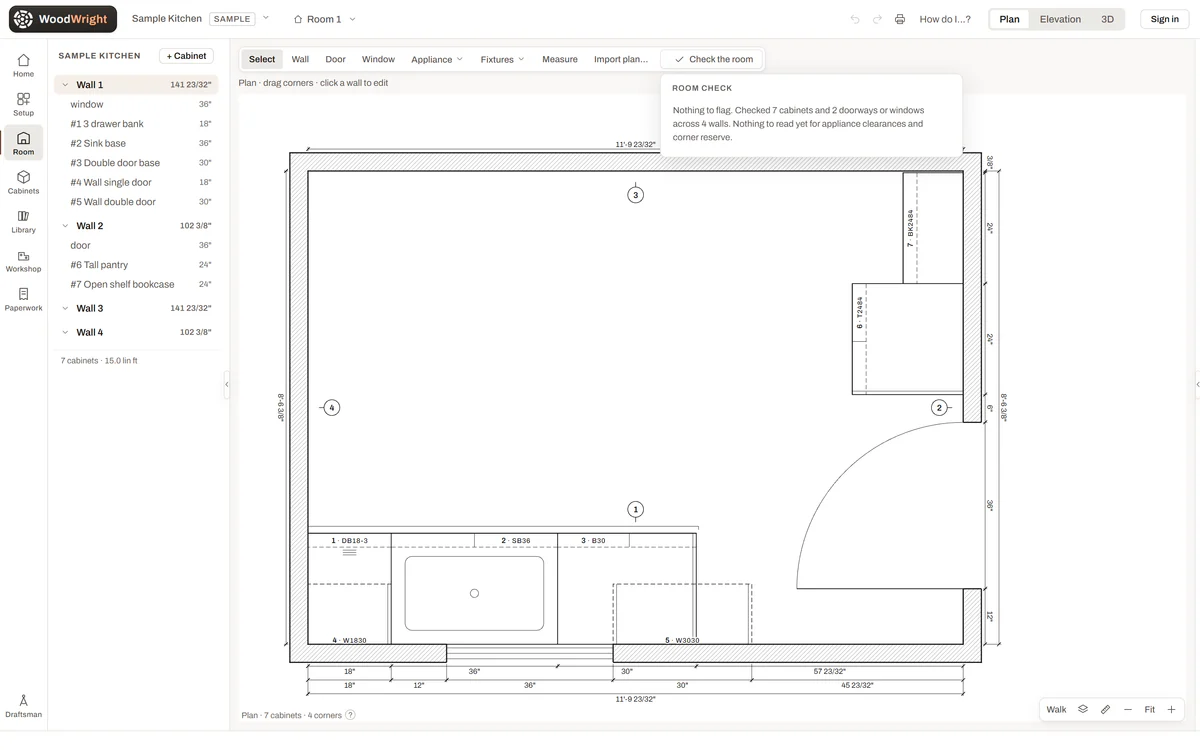

The Room check names more.

It names a part added by hand that runs into a roll-out spacer panel, and how far. It names two attached boxes whose doors’ hinge plates bore one shared end from both faces where the holes meet.

Nothing on a saw list moved.

202 cabinets in the shop's job files checked against 1.5.0, none changed. Three cuts changed, and each reaches only a cabinet somebody changed by hand in the way it says. None of our real jobs has one.

The three cuts that changed

Everything in 1.6.

Cuts that changed

Every one of the 202 cabinets on our real jobs cuts the same board it cut on 1.5.0. Nothing on a saw list moved. Three cuts changed, and each reaches only a cabinet somebody changed by hand in the way it says. None of our real jobs has one.

  • A roll-out behind a door, in a cabinet changed by hand. 1.5.0 moves a hinge up clear of a frameless roll-out when the bay's spacers are set to 0. From 1.6.0 that happens only in a cabinet nobody has changed by hand. If any part of the cabinet was added, resized, reshaped or removed by hand (an edge moved, a joint flipped, the box attached to its neighbour, or a door or drawer-front edge pulled by its handle count too), the bay gets its two spacer panels and the hinge stays where it was. The cut-list row and the Room check say a hand change put the spacers in, and that undoing the change brings the raised hinge back. A sink base's own missing top stretchers are the library's recipe and do not count. Why: on 1.5.0 a part added by hand could end up with the raised hinge plate's screw hole in its groove.
  • A stretcher added by hand standing on edge gets its grooves in the ends where it stands (3 inches tall, as deep as the flat one's). One lying flat cuts as before.
  • Delete a part you added and its size and Part Studio shape go with it. The next part you add starts with its own shape. A job already saved with a leftover is left as saved.

New in the Room check and on Sheets (checks, not cuts)

  • The Room check names a part added by hand that runs into a roll-out spacer panel's space, which panel, and how far.
  • It names two attached boxes whose doors' hinge plates bore one shared end from both faces where the holes meet.
  • Sheets says roll-out spacer panels are off the sheets for now: cut them by hand from the cut list; no program drills them.

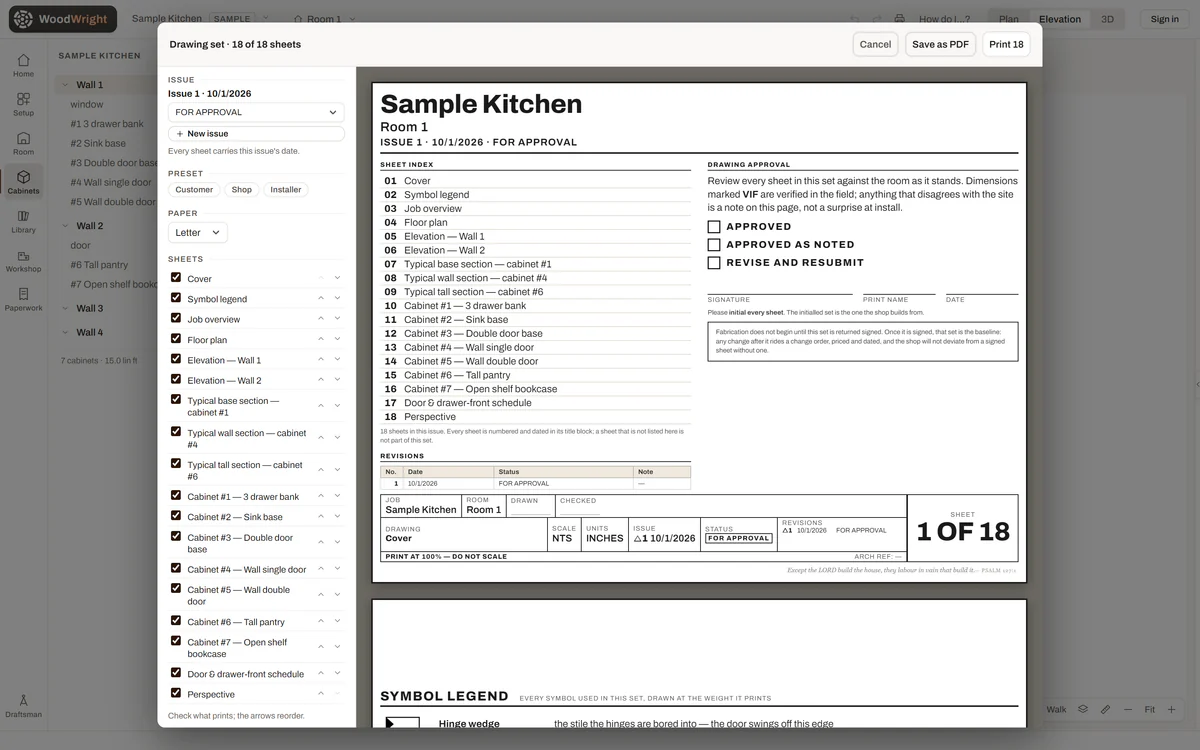

Papers

  • Build sheets are redrawn: the box drawn big, each size said once. Classic papers prints the old ones.
  • The door list and the schedule give each door's hinge count. Section drawings carry their note numbers.
  • Print this view prints what is on screen without the selection marks, and says so when nothing is drawn.
  • A print set is recorded as printed only when it really prints.

Library

  • Every Library piece is drawn from its own numbers, to scale: front, plan and side. The Drawn previews tick on the Library heading shows the old pictures (the tick is not remembered between launches yet).

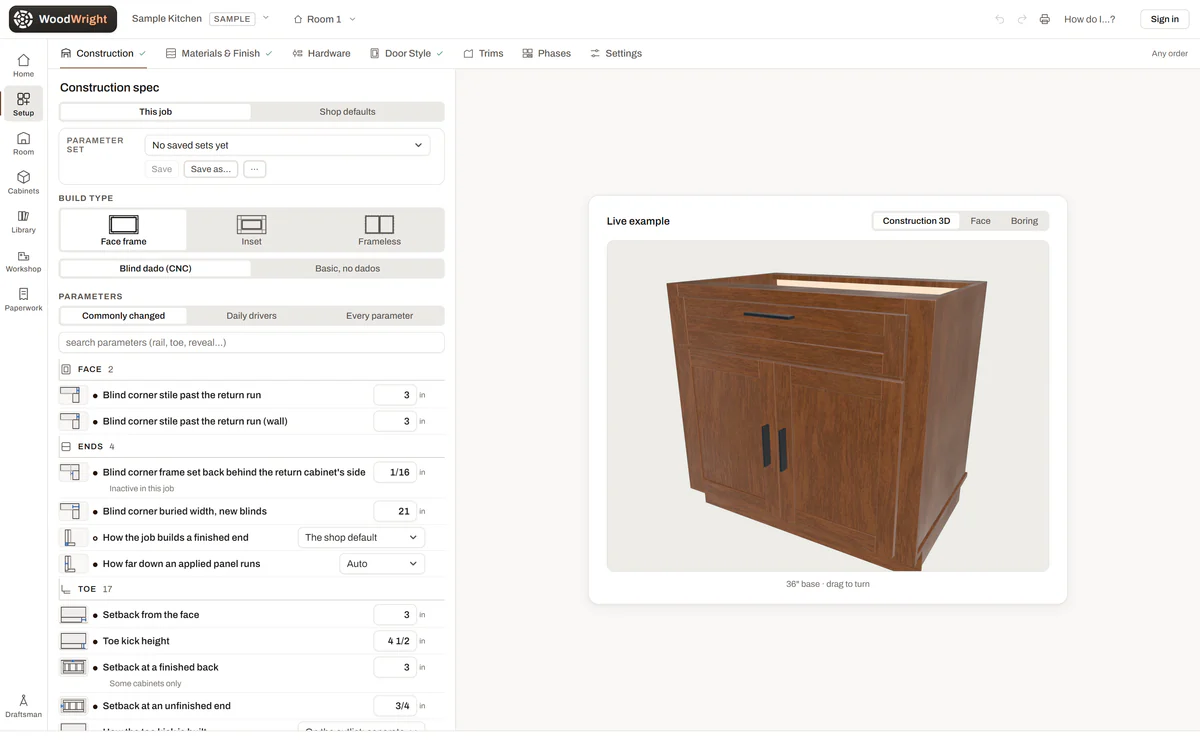

Setup and the cabinet editor

  • Setup's search finds "reveal" and "light". Number boxes hold sizes like 3 25/32. The stretcher widths grey out, and say why, when no top is built of stretchers. Backs read in words.
  • A cabinet's panel shows no Toe section on a wall box and no hinge row on a face of drawers. Esc closes its menu and keeps the cabinet picked. One press on a row's back arrow puts the job's value back.
  • In 3D, Fit frames the open cabinet, not the room. The bench opens on the cabinet you are working on.

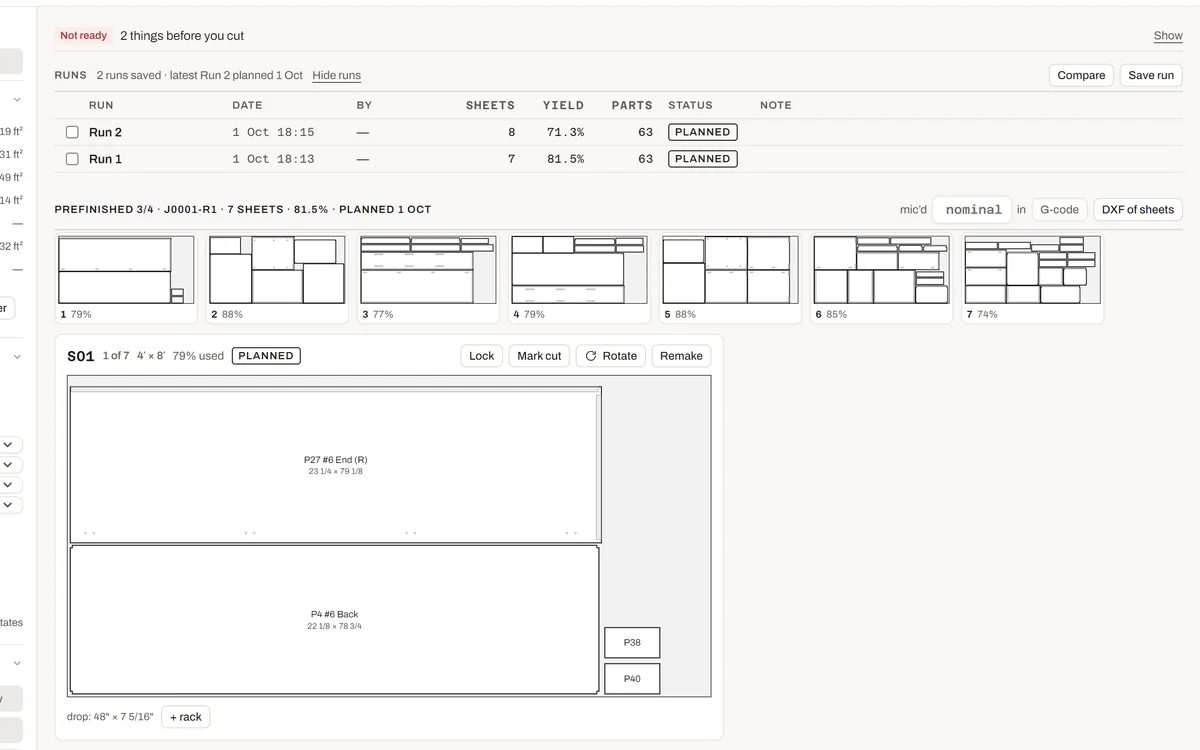

Sheet nesting

  • Sizes read in inches, the G-code preview names parts by their sheet numbers, and the sheets hold still while you work.
  • Add a bit: the form comes into view, ready for a name, with no Ramp box.

Fixes

  • The Company page keeps each box as you type it, no Save needed.
  • Home, the Quote card and the print check count starter rates the same way.
  • Messages show over open dialogs.

Every revision.

RevDateWhat it brought
1.62026-11-21Build sheets redrawn, every Library piece drawn to scale, and many small fixes in Setup, the editor and Sheets
1.52026-11-20Home shows where each job stands, a screen for the shop floor, and boxes cut the way the shop builds them
1.42026-11-04Two-tone finishes, cabinets finished inside, and cut lists that match how the shop builds
1.32026-10-23Settings on one page, the app in Spanish, Team Cloud, and sheet nesting for the saw
1.2.12026-10-15WoodWright for Mac (beta), jobs that carry their own settings, and a Draftsman you can watch work
1.22026-10-09a Measure station, a rail that follows the job, and a Draftsman that reads what you measured
1.12026-10-06the shop floor as a spreadsheet, doors made or bought, and re-nests onto your offcuts
1.02026-09-29the shop's own numbers, phases for the floor, and every nest run kept
0.122026-09-11a cabinet lands where there is room, and the app asks before it deletes
0.112026-09-09blind corners the shop's way, stain or paint read off the finish, and the Specs page shows what the sidebar overrides
0.102026-09-08the Draftsman is one conversation, corners face the right way, and blind corners are built the shop's way
0.9.22026-09-05the Draftsman stops getting stuck, jobs and rooms can be deleted, and every build says when it was made
0.9.12026-09-05Gemini takes the wheel, longer fast turns, and the red stand-ins fixed
0.92026-09-05a third Draftsman model, the shop as a folder, and a fix for the typing crash
0.82026-09-03special cabinets, cleaner trim, and a Draftsman that talks shop
0.72026-09-02corners cut what they need, the face frame is drawn from its parts, and the Draftsman stops going in circles
0.62026-08-31the first public release: design, quote, nest, and post from one app

Every release in full

Draw your next kitchen on 1.6.

Free · Windows and Mac (beta) · no account

The Mac app is a beta: nobody has walked it through on a Mac yet, so tell us what you find. On a Mac
